ImageQuality Hub
Software for uniform inspection across ImageMaster® systems
In optical metrology, ensuring measurement data correlation is crucial from lab to fab. As experts in optical metrology, TRIOPTICS has long recognized the importance of traceability in image quality testing. ImageQuality Hub is designed to significantly reduce complexity regarding traceability and correlation in image quality testing, allowing our customers to compare and visualize their collected measurement data more efficient than ever before. It enables supply chain partners to enhance correlation and supports data-based communication by simplifying and visualizing measurement data from TRIOPTICS ImageMaster® systems.
Optimized for accuracy, flexibility, and traceability from lab to fab, the world’s benchmark image quality testing from TRIOPTICS provides unparalleled control over your optical production processes. Take the next step to uniform inspection across ImageMaster® systems and gain significant time savings and convenience in achieving trustworthy results in your complete supply chain from a single source of truth with our new standalone software product ImageQuality Hub.
Uniform inspection
Traceability and correlation
Trustworthy results
ImageQuality Hub – The idea behind the software
The production of camera lenses and their integration into end products, such as smartphones or cars, usually involves several partners in the supply chain. Uncertain measurement conditions when testing the image quality of lenses can sometimes lead to questionable quality results. In particular, an ambiguous evaluation of measurement data between partners in the supply chain due to the lack of a standardized analysis tool leads to misunderstandings and increased workload. A direct comparison of data from different devices is often not possible.
To solve this problem, TRIOPTICS has developed the ImageQuality Hub software for standardized testing across ImageMaster® systems. The use of this software reduces the complexity around traceability and correlation in image quality testing. With ImageQuality Hub software, users can compare and visualize collected measurement data more efficiently than ever before. This results in significant time savings, and trustworthy results are obtained from a single source of truth. Improve the correlation of measurement values between partners in the supply chain and support data-based communication.
Workflows
Optimized workflows
Less complexity & simplified configuration
Homogeneous quality gate
Create trust among business partners & reduce efforts
In-depth correlation of data
Across machine types, factories & companies
Products
Software

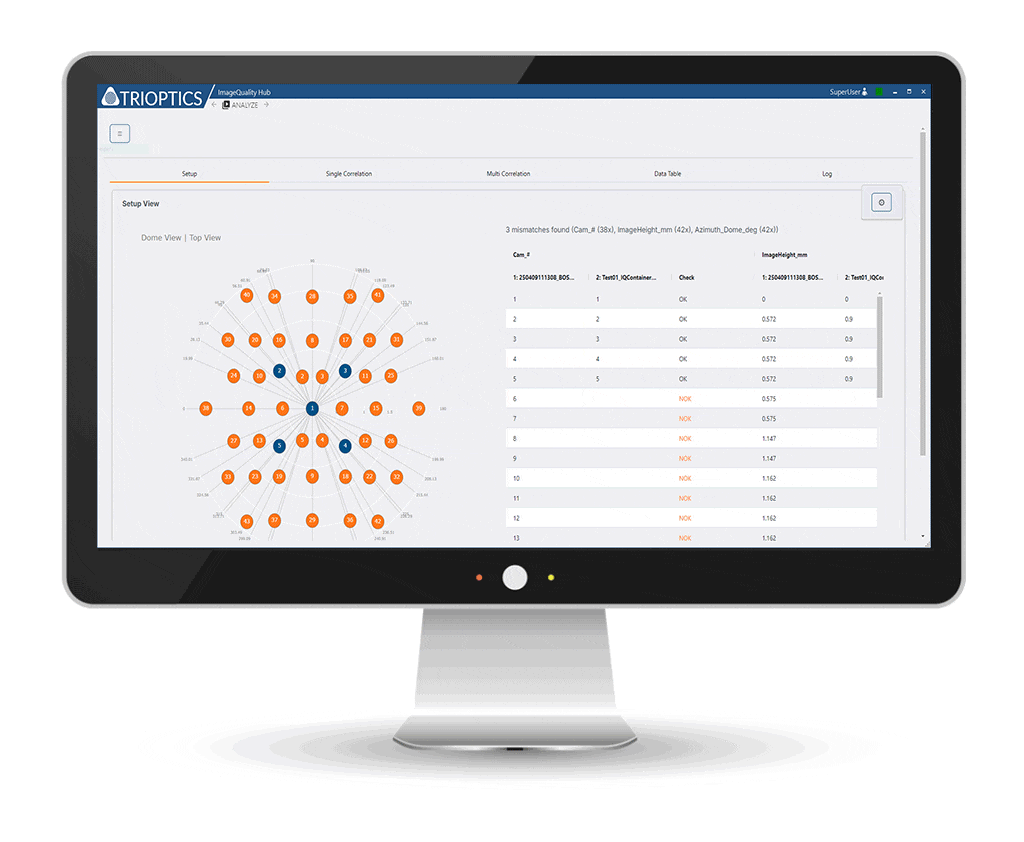

Homogeneous settings across machines

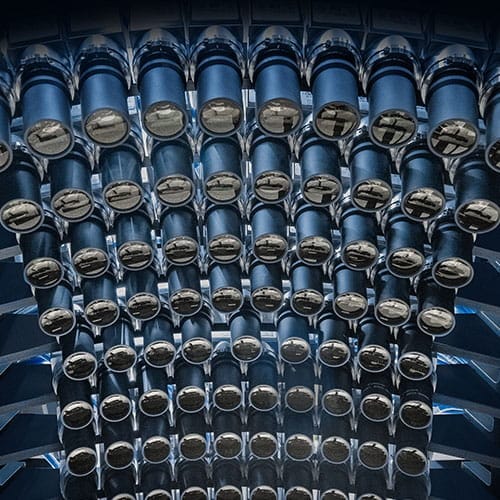

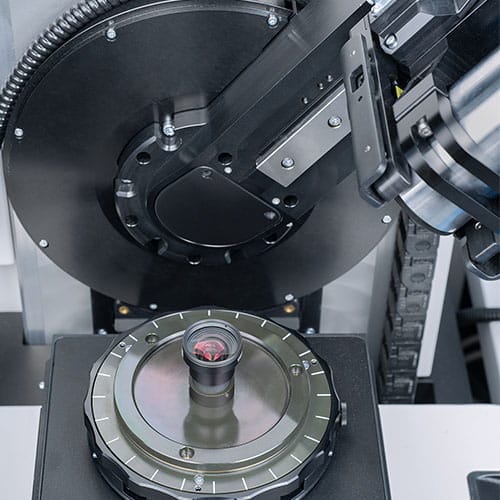

The configuration of measurement settings of ImageMaster® HR devices for R&D and ImageMaster® PRO devices for production environments is sometimes complex and different to each other.ImageQuality Hub enables homogeneous settings across machines. It provides a function to compare unlimited devices/files to identify setup/configuration discrepancies among instruments.

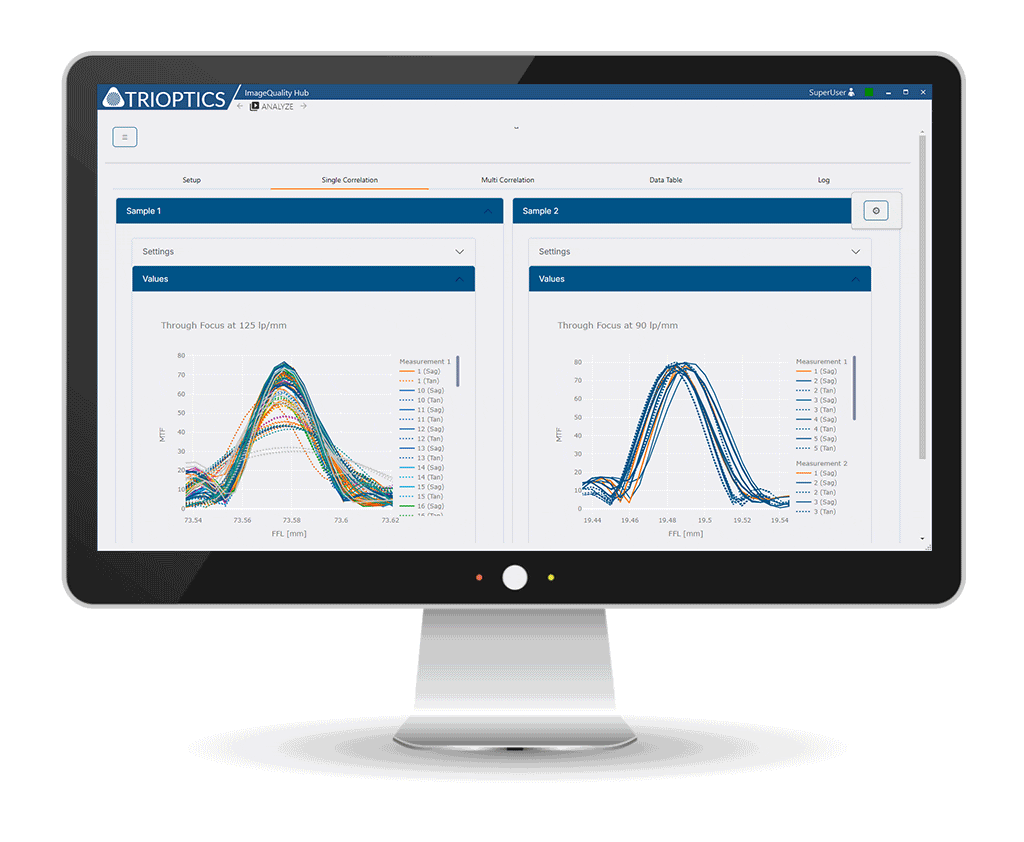

Single correlation of measurements
High complexity of measurement data analysis makes the correlation time consuming and hard to understand.The function "Single correlation of measurements" simplifies, visualizes and accelerates the process of R&D engineering.

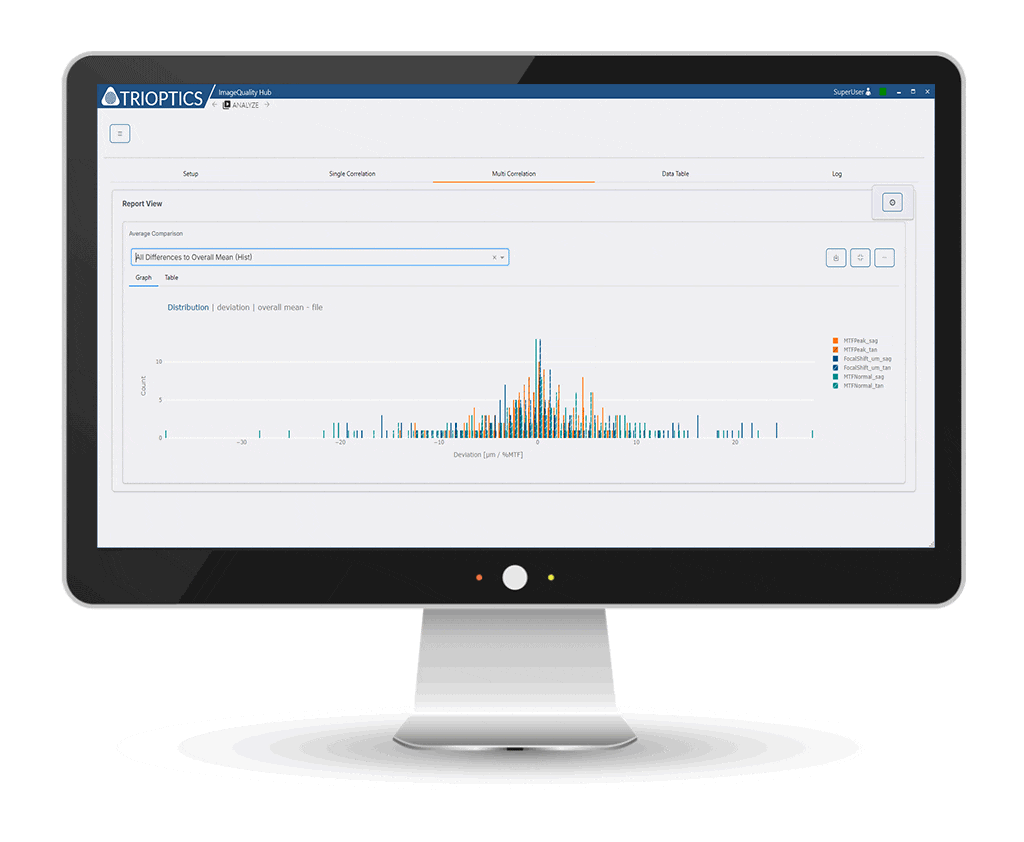

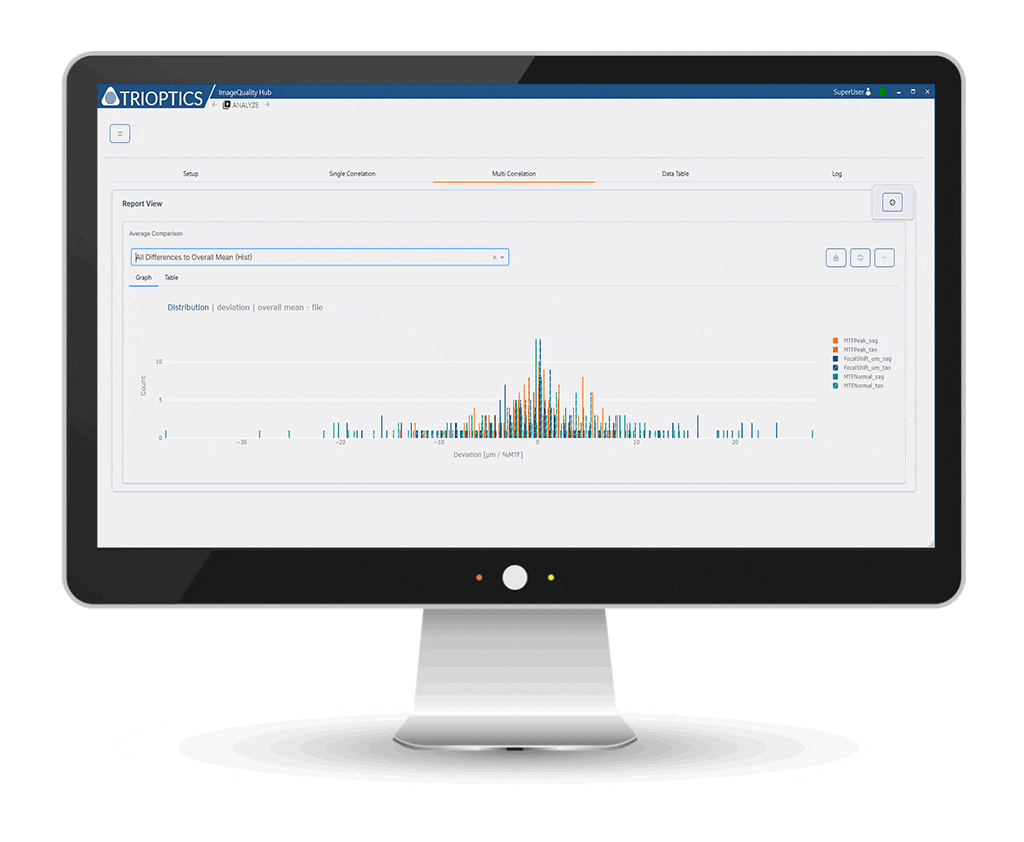

Multi correlation of instruments
Transferring image quality measurements from R&D to production, sometimes leads to high effort.The solution "Multi correlation of instruments" streamlines the process of scaling R&D analysis to mass production in the most reliable way. It enables correlation of more than 2 machines to scale to mass production.
TRIOPTICS ImageQuality Hub Software request
Are you interested in the software and would like to receive a quote?
Whether you need advice or already have specific requirements, we will be happy to help you!
Use our contact form and get quick feedback from our experts.
To learn more about these and other ImageQuality Hub solutions, please contact TRIOPTICS!
