Welcome
Imagemaster - MTF Equipment
Trioptics - Optical test equipment

Since 1992 TRIOPTICS is known as a leading manufacturer of optical test equipment. From the beginning the company has focused on the research and development of accurate and fully PC controlled optical test instruments for the industrial and scientific use. The development of innovative solutions in many fields of optical testing allowed TRIOPTICS to achieve a prominent presence on the international market. Our success is the result of the commitment and dedication of our employees.

The TRIOPTICS product range covers almost the complete field of optical testing, starting with standard optical test tools like spherometers, autocollimators, collimators, telescopes, dioptermeters, alignment telescopes, doublets, mirrors and mounts.

Products

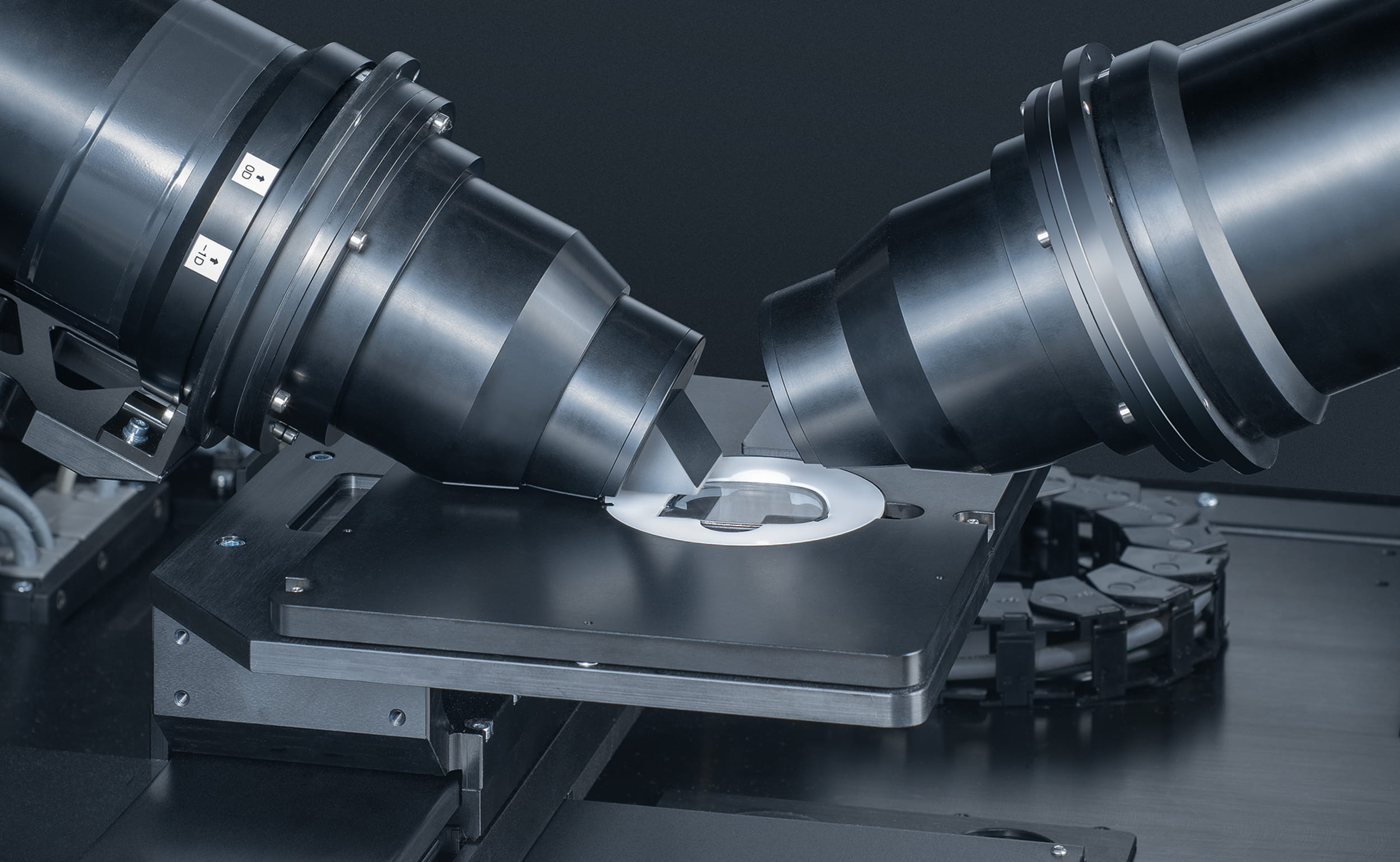

ImageMaster® is the most comprehensive line of MTF equipment for complete characterization of lenses and optical systems. It covers the complete spectral range from UV to VIS to IR. ImageMaster® instruments provide the flexibility required for R&D, their ultra fast operation make them ideal for production testing, and due to their high accuracy they have become world leading in mobile phone lens testing.

ProCam® TRIOPTICS automated solution for active alignment, assembly and testing of camera modules

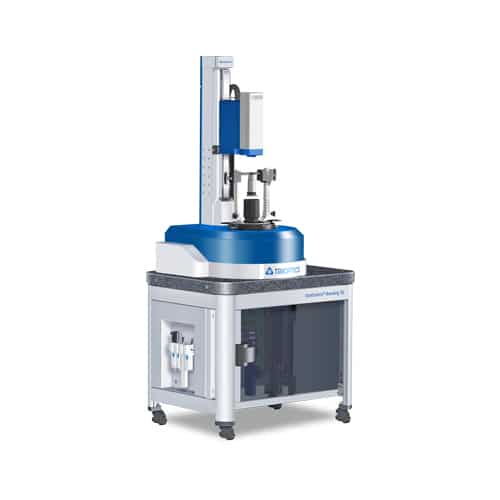

The OptiCentric® family comprises tools for precise and fully automatic alignment, cementing, bonding, and assembly of lenses and optical systems. It includes the measurement of multi-lens objectives in mounted condition, air gap distance and lens center thickness, as well as the individual centering error of spherical and aspherical lenses and the tilt of aspherical lenses. OptiCentric® instruments can measure virtually all sizes of lenses from millimeter to meter range.



OptiSurf® Low coherence interferometer measures center thickness and air gaps within assembled objective lenses

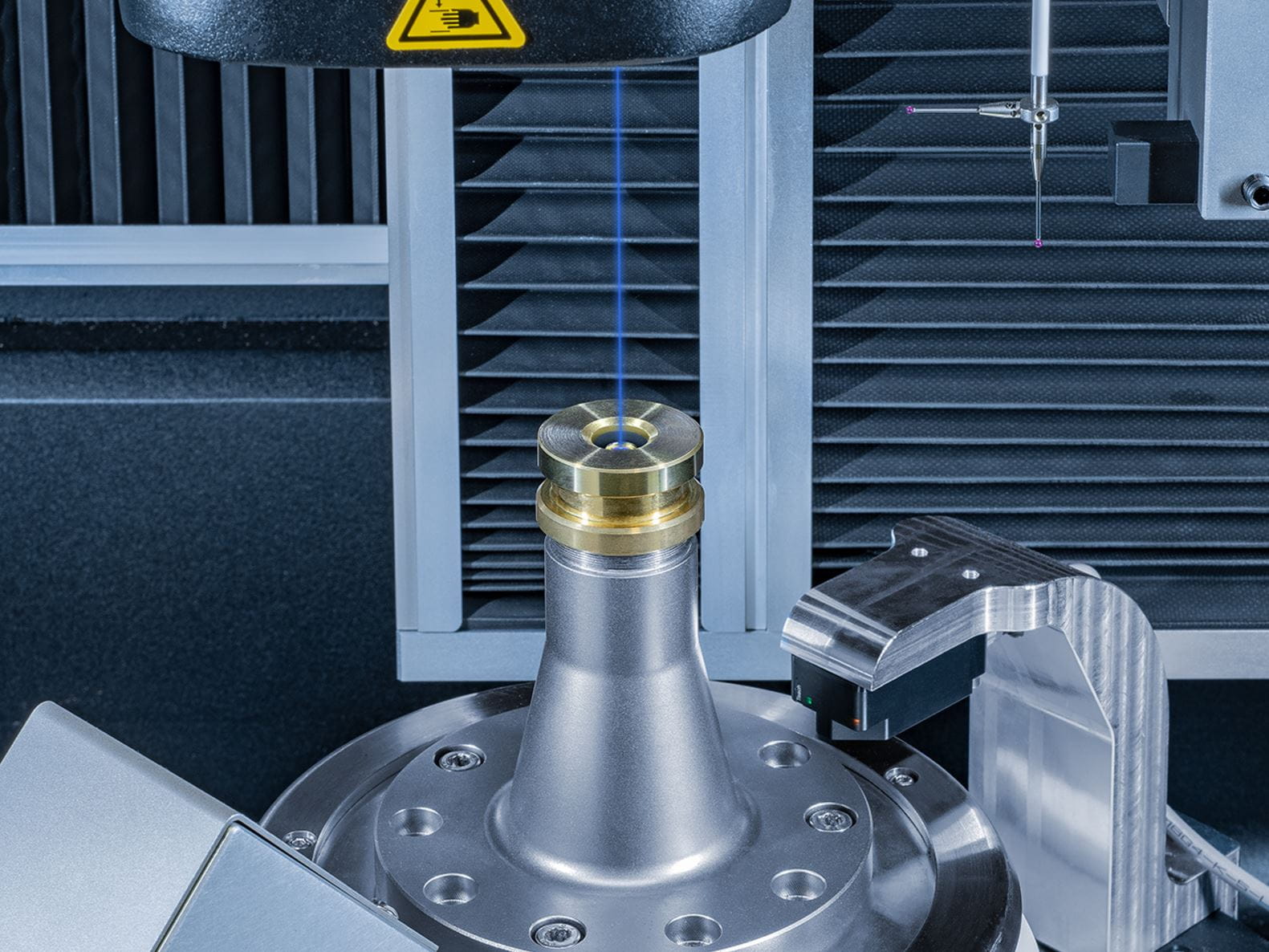

ATS – Alignment Turning Station with fully integrated measurement technology machine mounted lenses with submicron accuracy

OptiSpheric® is the industry’s standard for integrated optical testing. It provides fast and reliable test results of almost all the relevant optical parameters, i.e. effective focal length (EFL), modulation transfer function (MTF), back focal length (BFL), radius of curvature (ROC) and flange focal length (FFL). Extension modules include multi-wavelength and intraocular lens (IOL) testing.

The WaveSensor® and WaveMaster® instruments provide wavefront analysis of spherical and aspherical lenses. They work with highest accuracy and deliver an outstanding dynamic range, using Shack-Hartmann sensors. A special reflection setup guarantees that the lens shape is obtained as well. The range of applications covers lenses for digital cameras, contact and intraocular lenses, pickup lenses for CD/DVD appliances and many more.





The TriAngle® electronic autocollimator series from TRIOPTICS provides angle, wedge and straightness measurements for precision alignment tasks with excellent accuracy and speed. TriAngle® 3D enables the simultaneous measurement of all three angles.

PrismMaster® is the most accurate automatic goniometer featuring ultra-accurate angle measurements of prisms, polygons and other plano optics with accuracies higher than 0.2 arcsec.

The SpectroMaster® offers the highest accuracy measurement of the refractive index of optical glass in spectral ranges from UV to VIS to IR.

μPhase® Interferometer
measures the quality of spherical, aspherical and flat optics. It is compact and modular and measures optics and surfaces with reflectivities from 0.3% to 100%. The interferometer has a second camera for the sample alignment, and Fizeau, and Twyman-Green modes with phase shifting in one instrument.

Our instruments for ophthalmic metrology measure IOLs, contact lenses and ophthalmic glasses.

News

Breakthrough in mobile phone camera testing!

  • Dramatically increased throughput and yield
  • 3.5 times faster than ImageMaster® PRO 5
  • Measurement accuracy increased by 33%

    read more

ImageMaster PRO 9

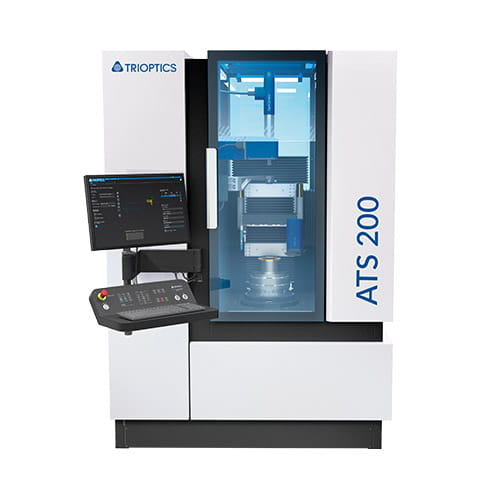

ATS 200 – The Alignment Turning Station with Fully Integrated Measurement Technology

TRIOPTICS presents the ATS as the first self-developed Alignment Turning Station, which has the widest range of applications in the class for mounted lenses up to 200 mm diameter: mounted spherical, aspherical and infrared lenses can be manufactured with an accuracy of 1 µm.





ProCam®

TRIOPTICS' new product group for testing and active alignment of camera modules

Testing camera modules for consumer devices that combine optics with a sensor and a read-out circuit is an important application in the market. Since the resolution of the sensors have increased, active alignment of the optics is also becoming more important.

read more


Read more about MTF measurement and autocollimators.
